Quick Details
characteristic
characteristic parameter
| Place of Origin | Dongguan, Guangdong, China |
| Brand name | kalun |

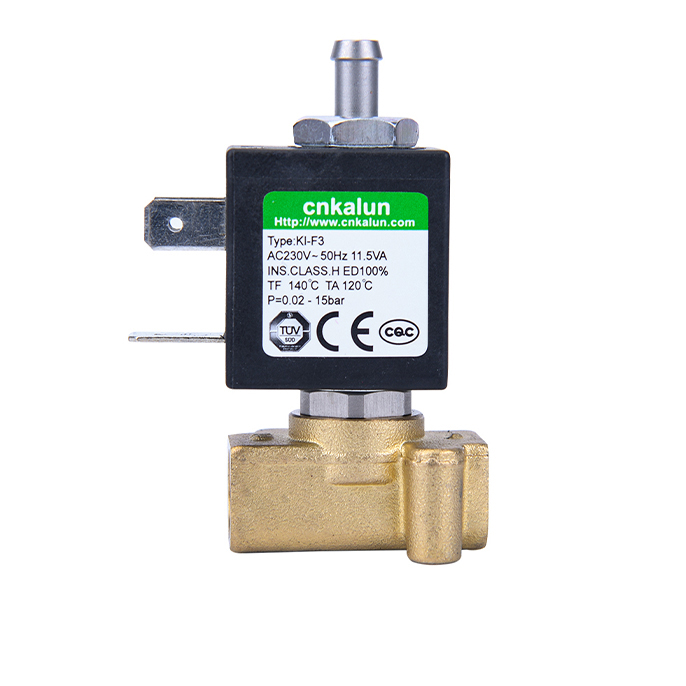

| Product name | Micro solenoid valve |
| model | Kl-F3-TB1 |
| Product certification | CE,TUV,CQC，RoHS REACH |
| name | Two position two way solenoid valve |
| Valve body material | PPS/Copper |
| form | Normally closed |
| Drift diameter | 0.9mm,1.2mm，2.0mm，2.3mm. |
| Selected voltage | DC12V,DC24V,AC110V,AC120V,AC220V,AC230V,AC240V |
| Product application | Coffee machine, steam engine, steam, water |
| Continuous operation, stable flow |
| Good sealing, no leakage |
| No noise, long service life |
| High pressure |
| Connection mode | cannula |
| ambient temperature | -10°C ~ +120°C |
| Fluid temperature | +140?C |
| Maximum working pressure differenceM. O. P. D. | 0.02~20bar |
| Pressure relief | 20 bar |
| Kv flow | （1）0.5L/min (?0.9mm) （2）0.7L/min (?1.2mm) （3）1.8L/min (?2.0mm) （4）2.3L/min (?2.3mm) |
Now some high-end coffee machines can not only brew coffee of different tastes, but also control the temperature, concentration and fineness of coffee powder to meet the requiremen···
